产品性能特点：

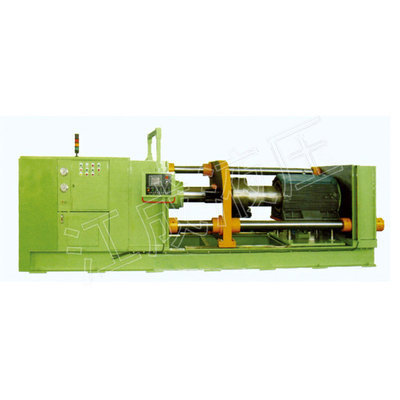

Y18系列卧式电机定子液压机是专门用于将电机定子压入电机外壳的压装设备。本机床采用卧式结构，从而解决了电机定子立式压装稳定性较差的问题。该机床为全数控电器控制，可以精确的控制定子压入电机外壳的距离，从而把夹具的数量降到最低，节约了成本。
Y18series of horizontal stator hydropress is the press equipment specially used in pressing of motor stator into motor housing. This machine uses horizontal structure and has solved the problem that the motor stator horizontal pressing is unstable. This machine tool is fully controlled by digital control appliance and can precisely control the distance of the pressing distance of stator into the motor housing. So it can minimize the quantity of fixture and saves the cost.
产品技术参数：
| 型号 | 单位 | 100T | 200T | 315T |
| 公称力 | KN | 1000 | 2000 | 3150 |
| 液体最大工作压力 | mpa | 26.3 | 25 | 25 |
| 主缸行程 | mm | 1000 | 1500 | 1800 |
| 最大开口距离 | mm | 2000 | 2500 | 3000 |
| 滑块尺寸 | mm | 450x1000 | 980x1380 | 1000x1400 |
| 升降工作台行程 | mm | 0-150可调 | 0-180可调 | 0-250可调 |
| 升降工作台尺寸 | mm | 900x800 | 1100x1000 | 1200x1100 |
| 滑块速度 | 快速压装 | mm/s | 16 | 19 | 15 |
| 慢速压装 | mm/s | 2-10 | 2-10 | 2-10 |
| 回程 | mm/s | 48 | 80 | 65 |
| 电机功率 | KW | 7.5 | 11 | 15 |
